Incremental Update of TypeScript Famix Models

Automation is key in modern development, as easier access to tools can significantly boost productivity. One practical example is VSCode extensions. During my summer internship in 2025, I developed a VSCode extension to simplify the use of ts2famix. The extension enables developers to generate Famix models for the Typescript projects directly in VSCode and keeps these models automatically updated as the code evolves.

Assumptions

This post assumes you already have familiarity with ts2famix and a basic understanding of VSCode extensions. We will focus on explaining the key aspects of the extension and provide a detailed exploration of the incremental update feature. We’ll also discuss potential enhancements and improvements for future implementation.

This extension aims to:

• Simplify creating the model from scratch
• Update the model incrementally each time a file is saved, thereby saving time and automating the workflow

Project Overview

The project follows the standard client-server architecture outlined in the Language Server Extension Guide and consists of two main components:

• Server: Uses the ts2famix library to generate or update the famix model.
• Client: Monitors changes in the TypeScript project and triggers incremental updates. It also provides commands to regenerate the model from scratch and lets the user configure where the JSON file is saved.

Communication between the client and server is handled via the Language Server Protocol (LSP).

Incremental Update Feature

Incremental Update Workflow

The incremental update process follows this workflow:

1. Change Detection: For each modified file, categorize the change type (creation, modification, or deletion)
2. Project Synchronization: Update the ts-morph project representation with the current file content
3. Famix Element Processing:
   • Identification: Locate all Famix elements that reference the modified file through their sourcedAnchor field
   • Dependency Tracing: Follow the ImportClause chain to find all dependent elements
   • Stub Management: Identify any related stub entities that may be affected
   • Element Removal: Delete all identified elements from the model
4. Targeted Regeneration: For non-deletion changes, recreate the necessary Famix elements for the modified file
5. Model Serialization: Generate an updated JSON representation and persist it to the configured storage location

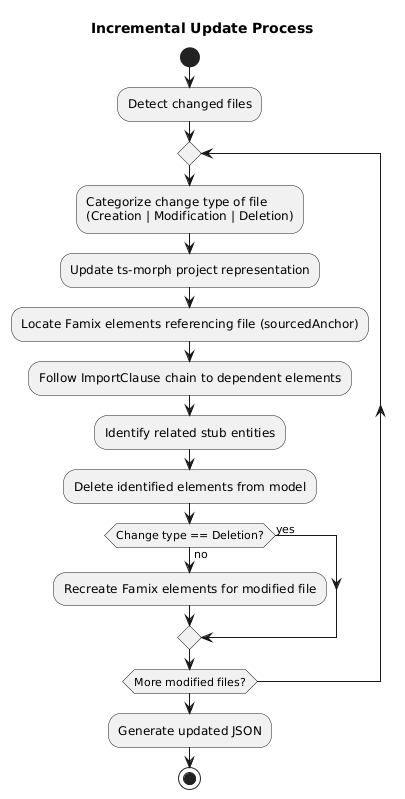

This workflow is also demonstrated on the next diagram:

Now let’s examine the design decisions behind this workflow in more detail, starting with how we determined the appropriate level of change processing.

Operating Granularity: Choosing the Right Level of Change Processing

One of the first development decisions was determining at what level we should process changes in the TypeScript code.

We considered three options:

1. Node level: Operating on individual AST nodes
2. File level: Processing entire files
3. Full regeneration: Rebuilding the entire Famix model from scratch

We decided against the node level approach because it would require significantly more complex logic.

The full regeneration option already exists as a command that users can invoke when they need to rebuild the entire model, such as when something goes wrong or when they want a fresh start.

We ultimately chose the file level approach for several reasons:

• Simpler implementation: We can reuse the same code that generates the Famix model from scratch
• Practical necessity: File-level operations are unavoidable for actions like file creation or deletion, where we need to add or remove all elements for a specific file

This approach does have limitations. We must carefully prevent element duplication by ensuring all stored state stays synchronized during incremental updates. This represents a trade-off between state management and logic complexity - we minimize intermediate state storage to avoid duplication issues, though this makes it more challenging to create logic that works for both initial model creation and incremental updates.

Removing and Recreating Elements

Our approach is to remove the outdated Famix elements and recreate them when files change. While conceptually simple, this raises an important question: how do we identify which elements need to be updated in such a way?

Since we operate at the file level, we need to find all elements created from a specific file. This requires tracking which elements correspond to which files.

Approaches Considered for Element Tracking

Initial Approach: File-Based Mapping

We first considered creating a mapping between each file name and its generated elements. The process would work like this:

1. Start processing a file
2. Set the current file name as context
3. Add each new element to a list associated with this file name
4. Process the next file once completed

However, this approach had two significant problems:

• It requires maintaining additional state that must be kept synchronized
• More importantly, it breaks when processing elements from different files simultaneously

Consider this inheritance example with two files:

a.ts:

import { B } from './b';

class A extends B { }

b.ts:

export class B { }

If we process a.ts first and haven’t yet created the Famix element for class B, we’d check for B’s existence, create it on-demand, and incorrectly associate it with a.ts rather than b.ts.

The Current Approach: Using Source Anchors

Ts-morph elements aren’t necessarily processed in sequential file order. Elements from different files might be processed concurrently, rather than completing all elements from one file before starting the next.

Given this behavior, we need to determine the source file for each element individually. Fortunately, we already have a mechanism for this through the IndexedFileAnchor, which exists as a sourcedAnchor field in most Famix elements. We can leverage this existing data structure to track which elements belong to which files.

This approach does have a minor downside: it somewhat violates the Single Responsibility Principle, as we’re using the anchor for both source location and element tracking. However, we assessed this as a low risk since the structure of ts2famix elements and their sourcedAnchor field is unlikely to change significantly.

The Challenge with Elements Lacking Source Anchors

A common limitation across all approaches is that some Famix elements don’t have a sourceAnchor. The PrimitiveType is a prime example. As an optimization, we create primitive types (void, boolean, number, string, etc.) only once and reuse them across multiple files. Consequently, these elements don’t have a sourcedAnchor pointing to any specific file.

This creates an edge case: if we remove the only file containing a particular primitive type, that type will remain in the repository even though it no longer exists in the TypeScript code. Over time, this could lead to orphaned primitive types in the model.

For the current implementation, we’ve prioritized other aspects of the incremental update. In future iterations, we might implement a tracking mechanism, such as a map where each primitive type is associated with a list of files that use it, or develop an alternative approach to address this issue.

Managing Related Elements

Identifying elements associated with a specific file is only part of the solution. We must also ensure that all references to these elements remain consistent after incremental update. This requires finding and updating any element that had a reference to the removed elements.

The update process involves finding these dependent elements, removing them, and then recreating them by reprocessing their source files. But which elements can reference others? This is where associations come into play. Associations are created specifically to represent relationships between elements. Additionally, the referenced elements themselves may contain fields that store these associations (for example, the Interface element has a _subclasses field containing all Inheritance elements where the Interface is used).

To illustrate how we identify related elements, let’s examine an inheritance relationship:

export class Inheritance extends EntityWithSourceAnchor implements FullyQualifiedNameEntity {
    private _superclass!: Class | Interface;
    private _subclass!: Class | Interface;
    // ...
    get fullyQualifiedName(): string {
        return `${this.subclass.fullyQualifiedName} extends ${this.superclass.fullyQualifiedName}`;
    }
}

When handling changes, we need to consider two distinct scenarios:

• Changes to the dependent entity (subclass): When a subclass changes
• Changes to the independent entity (superclass): When a superclass changes

When a Dependent Entity Changes

When the file containing a dependent entity (like a subclass) changes, our task is straightforward. Since we create associations (such as Inheritance) with the sourcedAnchor pointing to the dependent entity’s file, we’ll automatically identify both the dependent entity and its association as elements of the changed file.

When an Independent Entity Changes

This scenario is more complex. We need to:

1. Find all associations that reference the independent entity
2. Delete these associations
3. Recreate them by reprocessing the files containing the dependent entities from the found associations

Handling Changes in Files with Reexports

Named Imports

The complexity increases significantly when dealing with reexport chains between independent and dependent entities. To understand this challenge, let’s first examine the structure of the ImportClause association:

export class ImportClause extends EntityWithSourceAnchor implements FullyQualifiedNameEntity {
    private _importingEntity!: Module;
    private _importedEntity!: NamedEntity;
    private _moduleSpecifier!: string;
    // ...
}

Consider the following reexport chain example:

export.ts:

export class B { }

reexport1.ts:

export { B } from './export.ts';

reexport2.ts:

export { B } from './reexport1.ts';

reexport3.ts:

export { B } from './reexport2.ts';

import.ts:

import { B } from './reexport3.ts';

class A extends B { }

When creating an ImportClause for the import.ts module:

• The importedEntity field points to the Famix element representing class B, which originates in export.ts (as indicated by B’s source anchor)
• The importingEntity field references the Famix element for the import.ts module itself
• The moduleSpecifier field stores the direct import path as written in the code (in this case reexport3.ts) rather than the original source file

Now, imagine we modify reexport3.ts to be an empty file:

reexport3.ts:

With this change, we should now use a stub entity as the importedEntity. However, using our standard file-based approach, we would only identify reexport3.ts as changed, missing the need to update the ImportClause in import.ts.

To solve this, we extend our update logic to use the moduleSpecifier field: when a file changes, we check if any ImportClause has a sourcedAnchor path matching that file. If found, we recreate the ImportClause by locating the file for the importingEntity and regenerating its associations.

But what about changes to intermediate reexport files? If instead we modify reexport2.ts to be empty:

reexport2.ts:

The file name reexport2.ts isn’t directly referenced in the ImportClause for import.ts, making it impossible to trace the dependency through direct references. Our solution is to create ImportClause instances not only for imports but also for each reexport in the chain:

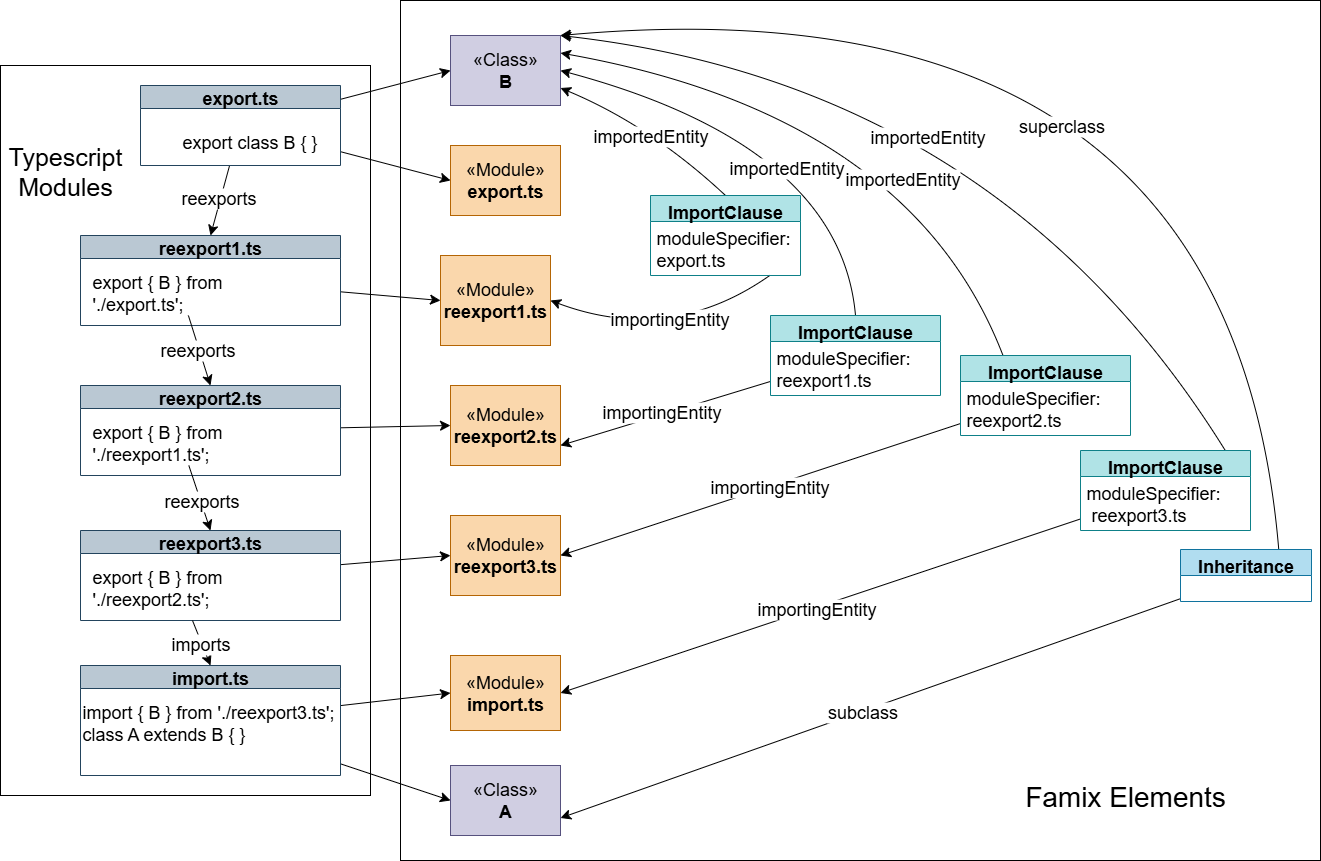

Import Clauses for the Reexport Chain

This approach ensures the entire chain of reexports in TypeScript is represented in the Famix model. When any file in the chain changes, we can identify all affected files by traversing the chain of ImportClause relationships.

Namespace Imports

TypeScript also supports namespace imports and reexports. Consider this example:

export.ts:

export class A { }
export class B { }

reexport.ts:

export * from './export';
export class C { }

import.ts:

import * as x from './reexport';

The import.ts file imports everything from reexport.ts as a namespace. Our current implementation creates one ImportClause for each exported entity in the exporting file, following the chain recursively for any namespace reexports. The resulting import clauses are illustrated in this diagram:

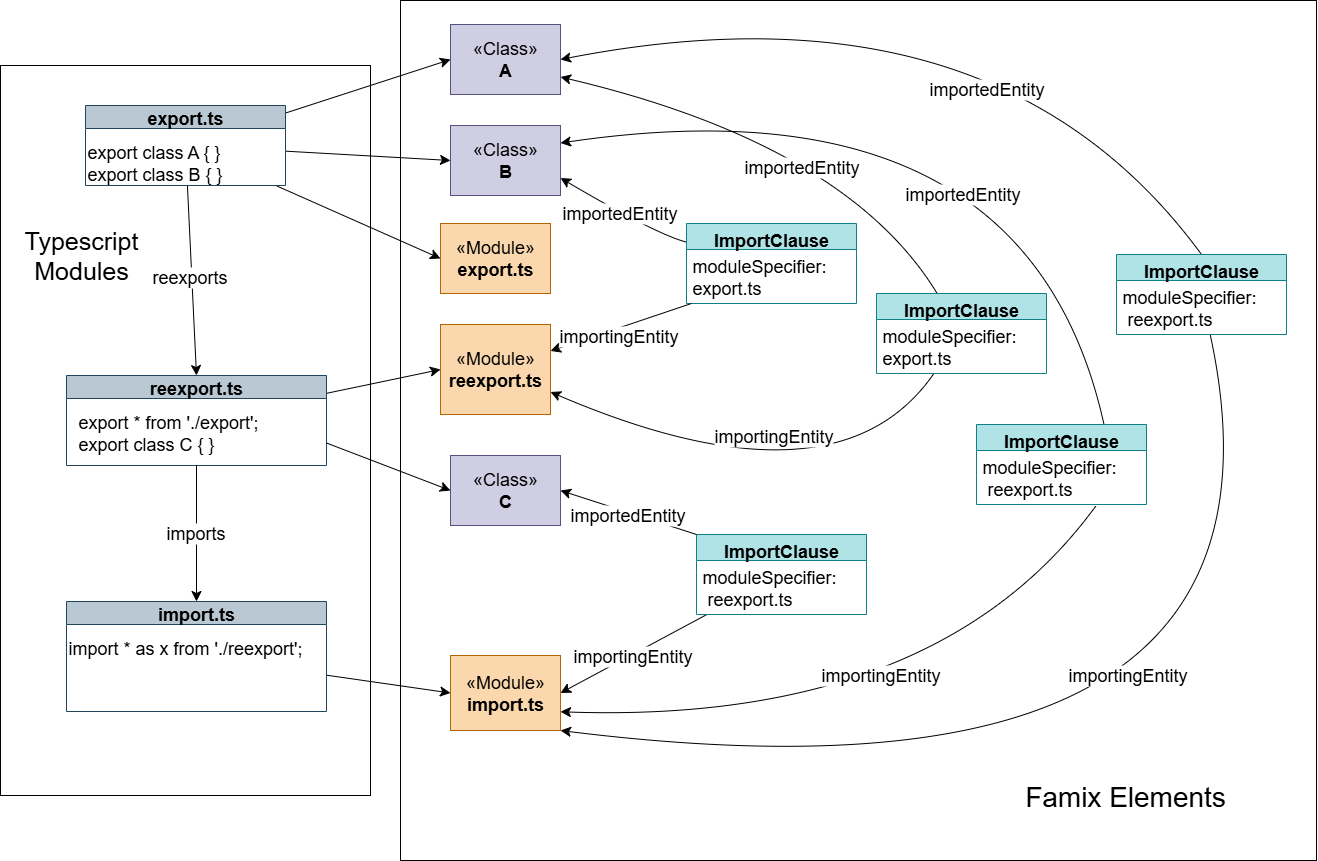

Import Clauses for the Namespace Reexport Chain

Default Imports and Require-Style Imports

Other import types still need implementation. For default imports, we can apply logic similar to named imports with some adjustments. For CommonJS-style imports using the require keyword, we can either implement them similarly to namespace imports or use stub entities for the importedEntity if the implementation becomes too complex.

Potential Optimizations

Our main concern with the current implementation is the namespace import handling, which can generate many ImportClause instances, potentially impacting memory usage and processing speed. While this approach provides a comprehensive view of entity export/import relationships, we could optimize it by using stub entities for importedEntity in namespace imports. This would simplify the model to show only module-to-module relationships rather than entity-to-module relationships:

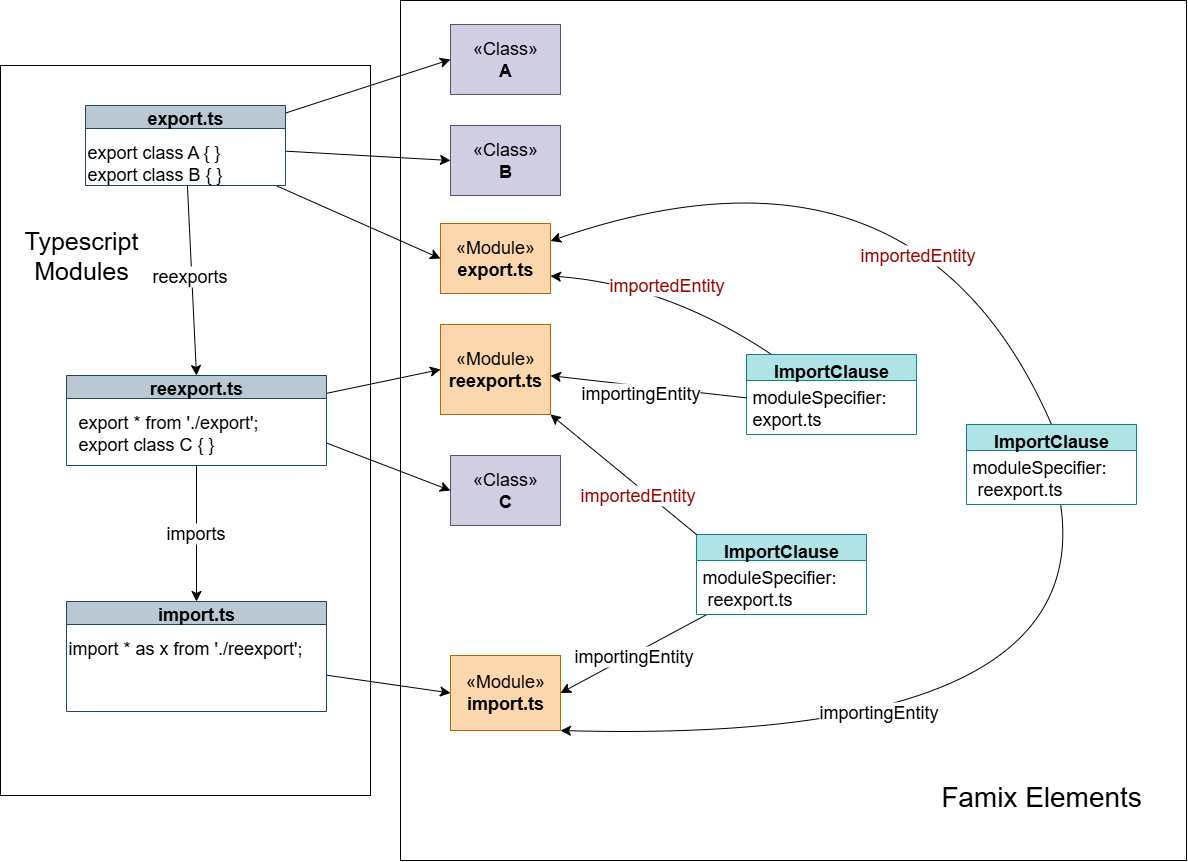

Optimized Import Clauses for the Namespace Reexport Chain

Further Development and Optimization

The next stages of development will focus on extending incremental update support to other element types.

There are also several aspects of performance and speed that can be improved.

Currently, the main bottleneck of the extension is that it recreates the model from scratch every time the VSCode extension starts. This creates two significant problems:

1. Slow Startup: The extension takes considerable time to recreate the model before it can perform incremental updates.
2. Memory Usage: We need to keep the entire Famix model in memory to run incremental updates. For large projects, this is inefficient in terms of memory consumption.

To address these issues, we’re considering the following approaches:

Loading the Model on Startup

Instead of recreating the model from scratch when opening the extension, we could serialize it, store it, and then retrieve it later. This approach requires addressing several considerations:

• How to handle cases where the project has changed since the last serialized model was saved (e.g., through external tools)
• Which events should trigger model serialization and storage
• Where to store the model

It’s important to note that while we can currently generate JSON files with the model for analysis purposes, these files aren’t suitable for model persistence because they don’t preserve all element fields. When exploring storage options, the workspace storage API offers a promising solution.

Reducing Memory Requirements

The more challenging problem is finding ways to avoid holding the entire model in memory. This area requires further research to identify the best approach.

These two challenges are interconnected, and it’s important to develop a solution that addresses both effectively.

Conclusion

In this post, we’ve discussed the design and challenges of implementing the incremental update feature for the Famix model. While the current solution isn’t finished, it establishes a foundation for future enhancements and optimizations.
