Cloning a project from GitHub

Cloning a project from GitHub

Clone using

git clone ...

-or-

Clone with MooseEasyUtility. In a Moose Playground (CTRL+O+W):

javaProjectFileRef := MooseEasyUtility cloneGitHubRepo:
    'https://github.com/bethrobson/Head-First-Design-Patterns'.

Creating a Moose Model (FAMIX)

Creating a Moose Model (FAMIX)

We will parse Java source to a Moose Model using VerveineJ.

1. Install VerveineJ in a Moose Playground as follows:

verveineJFileRef := MooseEasyUtility cloneGitHubRepo:
    'https://github.com/moosetechnology/VerveineJ'.

You can also install it by cloning the repo in a command line.

Creating a Moose Model (FAMIX)

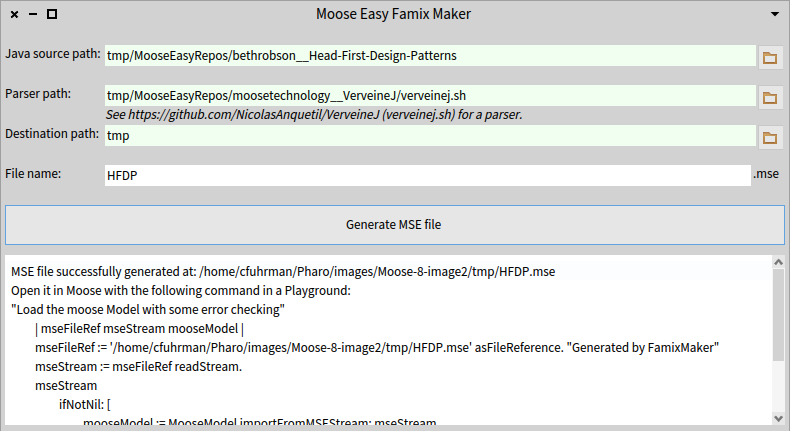

2. Start the FamixMaker tool in the menu Moose > Moose Tools > Famix Maker to produce a tmp/HFDP.mse Moose Model

Loading model in Moose

Loading model in Moose

In a Moose Playground, execute:

"Load the moose Model with some error checking"
| mseFileRef mseStream mooseModel |
mseFileRef := 'tmp/HFDP.mse' asFileReference. "Generated by FamixMaker"
mseStream := mseFileRef readStream.
mseStream
	ifNotNil: [
		mooseModel := MooseModel importFromMSEStream: mseStream.
		mooseModel rootFolder:
      'tmp/MooseEasyRepos/bethrobson__Head-First-Design-Patterns'.
		mooseModel install. "So it appears in the Panel"
		mseStream close. ]
	ifNil: [ self error:
    'Could not load MSE file into Moose: ' , mseFileRef asString ].

Visualizing the model (PlantUML)

Visualizing the model (PlantUML)

• Click Moose > Moose Projects > Load PlantUML Gizmo to load the project.

• Invoke the GUI with the following command in a Moose Playground:

  PUGizmoForMoose open.


Visualizing the model (PlantUML)

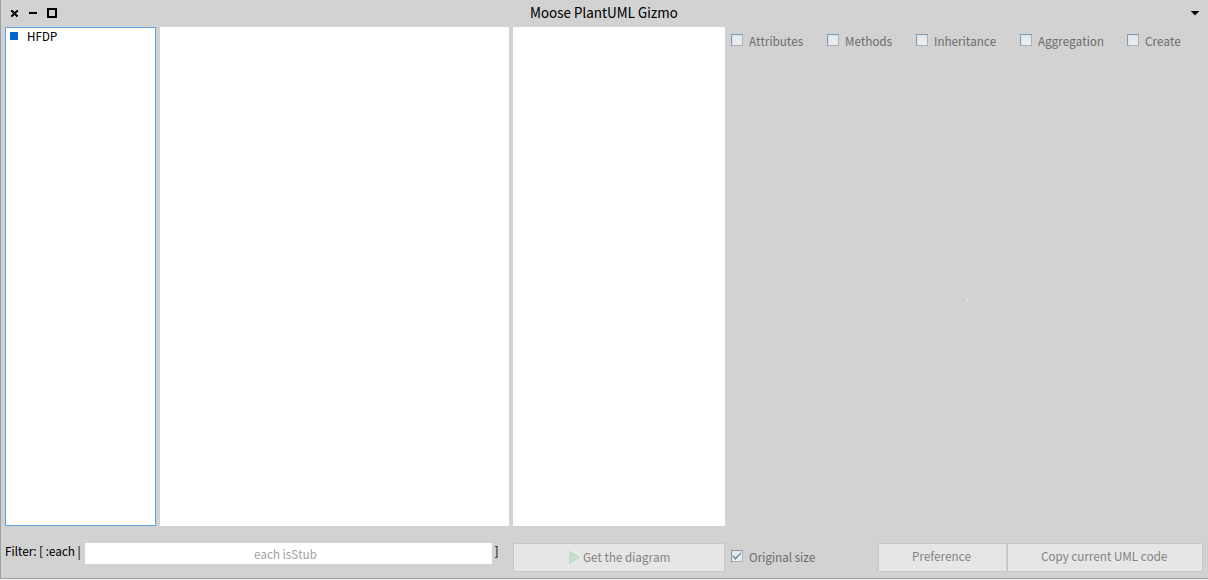

The following browser should appear:

Visualizing the model (PlantUML)

See the blog entry for details.

Analyzing the model

Analyzing the model

There are some other ways to use Pharo to do analyses on a Java model. Benoît Verhaeghe has a complementary blog entry to show such analyses.

Execute the following in a Moose Playground:

Metacello new
    githubUser: 'badetitou' project: 'OOAnalysis' commitish: 'master' path: '.';
    baseline: 'OOAnalysis';
    load

Analyzing the model

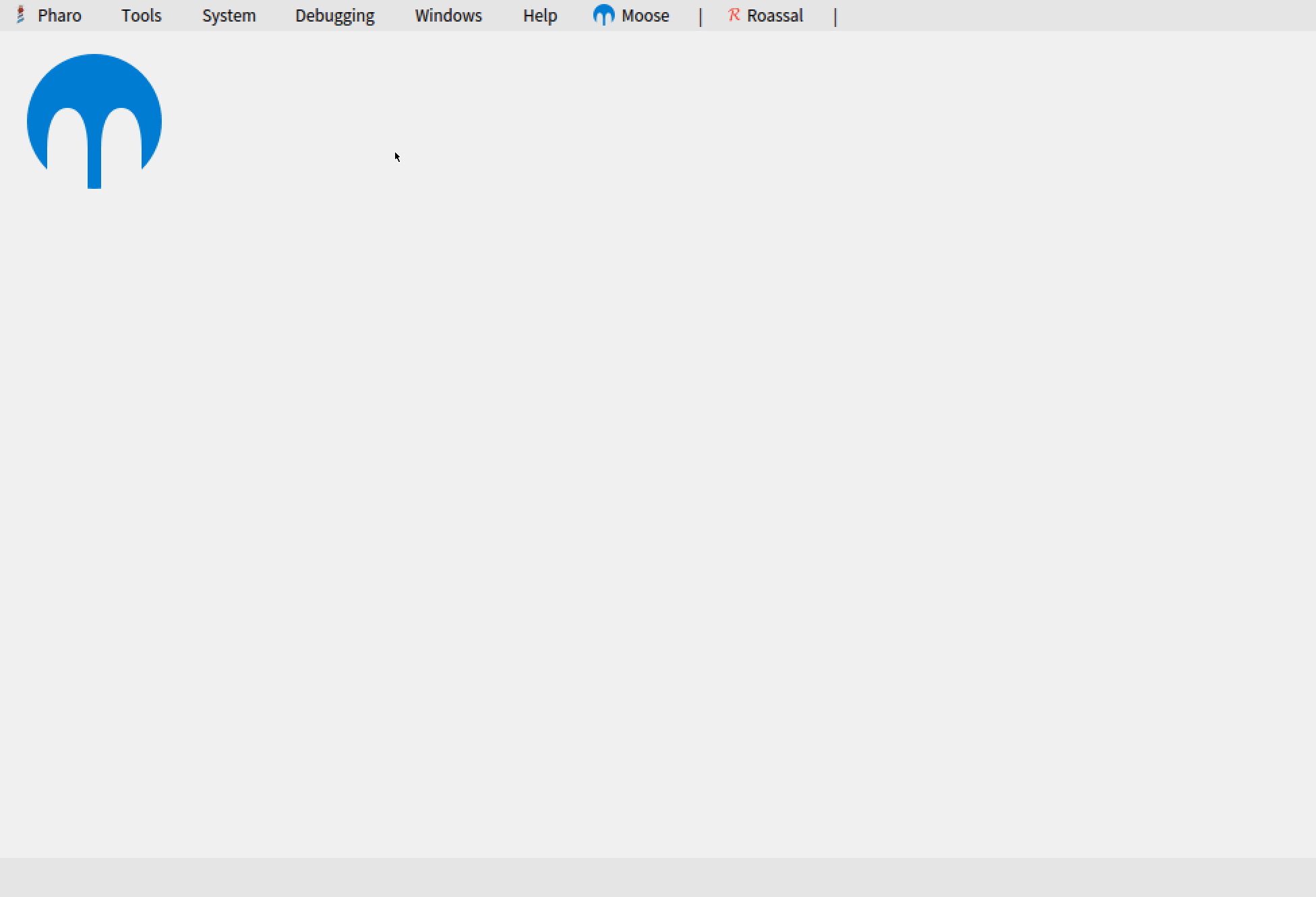

<scripts > in OOAnalysis/OOCriticsVisu:

Analyzing the model

Write your own analyses in Pharo/Moose.

Learn more Pharo:

• Pharo MOOC
• Pharo on exercism.io
• Pharo By Example book
• MGL843 Sujets avancés en conception logicielle (master’s course at ÉTS)

Analyzing the model

Write your own analyses in Pharo/Moose.

Learn more Moose:

• MooseQuery for advanced queries in Moose models
• GitMiner has a few classes to do static analysis

Analyzing the model

Write your own analyses in Pharo/Moose.

Analyze other languages (experimental):

• C# - roslyn2famix
• C++ - VerveineC-Cpp was started but not quite finished
• Fortran - VerveineF
